Ultrasonic welding technology for aluminum strips in solar cells

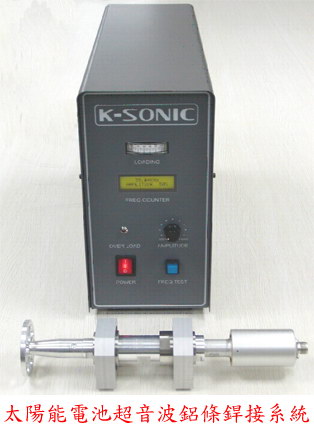

Product Description: 35KHz Ultrasonic Rolling Welding System for Solar Backsheet Aluminum Foil Strip and Coating Layer

Features:
1. AFC (Automatic Frequency Control) 35KHz Ultrasonic System
2. Ultrasonic Generator Power adjustable from 50% to 100%
3. Double-node clamping rolling welding design for the ultrasonic vibration unit
4. Can be integrated with automated machinery, with optional additions such as motors, cylinders, and other up-down drive and rotary mechanisms

Specifications: Please contact our company
Taipei: +886-2-22980299 ext. 214
Taichung: +886-4-22223301
Tainan: +886-6-2990566

For a dynamic video, please go to the 'Product Introduction' section, Metal Welding Equipment, and download the 'Ultrasonic Aluminum Strip Welding Product for Solar Panels'.
